09 0631 300 04 | binder

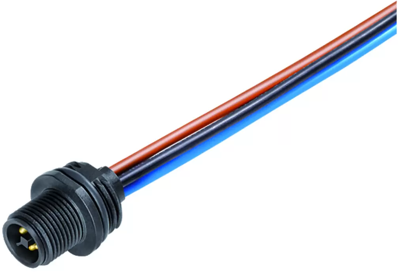

Panel plug, M12, 4 pole, strand connection, screw locking, straight, 09 0631 300 04

Order No.: 70P1973
EAN: 4099891663292
MPN:
09 0631 300 04
Series: 813
09 0631 300 04 binder Sensor-Actuator Connectors Image 1
09 0631 300 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.3978 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.40 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3978 €
10 pcs.
16.3625 €
50 pcs.
15.3867 €
100 pcs.
14.4585 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 09 0631 300 04, binder

M12-T Male panel mount connector, Contacts: 4, unshielded, single wires, IP68, M16x1.5.

Technical specifications
Filter Property Value
Pin number 4 pole
Degree of protection (IP) IP68
Assembly panel mounting
Orientation straight
Version cable 0.2 m
Product type panel plug
Additional parts equipped
Type of locking screw locking
Contact connection strand connection
Thread size M12
contact surface gold-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
