09 0631 120 04 | binder

Panel plug, M12, 4 pole, strand connection, screw locking, straight, 09 0631 120 04

Order No.: 66P0994
EAN: 4099879087270
MPN:
09 0631 120 04
Series: 813
09 0631 120 04 binder Sensor-Actuator Connectors Image 1
09 0631 120 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.3609 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.36 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3609 €
10 pcs.
17.9214 €
50 pcs.
16.6957 €
150 pcs.
15.9579 €
500 pcs.
15.1487 €
*incl. VAT plus shipping costs
Subject to prior sale

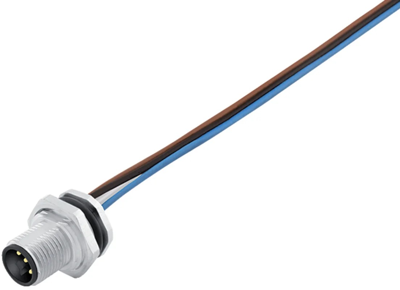

Male panel mount connector, 09-0631-120-04, Franz Binder

M12-T Male connector, poles 4, unshielded, single wires, IP68, UL, VDE, M16x1.5, front fastened

Technical specifications
Pin number 4 pole
Degree of protection (IP) IP68
Assembly front mounting
Orientation straight
Version cable 0.2 m
Product type panel plug
Additional parts equipped
Type of locking screw locking
Contact connection strand connection
Thread size M12
contact surface gold-plated
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
