09 0484 600 08 | binder
Panel socket, M12, 8 pole, SMD, screw locking, straight, 09 0484 600 08
Unit Price (€ / pc.)
10.3530 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.35 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3530 €
10 pcs.
9.6390 €
50 pcs.
8.9607 €
100 pcs.
8.0563 €
*incl. VAT plus shipping costs
Subject to prior sale

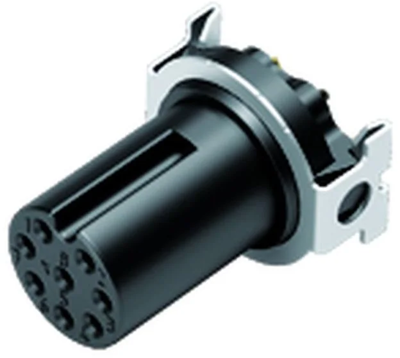

Female receptacle, 09 0484 600 08, binder
M12-A Female receptacle, Contacts: 8, unshielded, SMT, IP67, for SMT.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | SMD | |
| contact surface | gold-plated | |
| Coding | A | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | panel socket | |
| Pin number | 8 pole | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
