09 0442 601 04 | binder
Panel socket, M12, 4 pole, SMD, screw locking, straight, 09 0442 601 04
Unit Price (€ / pc.)
8.4609 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
8.46 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4609 €
10 pcs.
7.6160 €
50 pcs.
6.6997 €
100 pcs.
6.0333 €
*incl. VAT plus shipping costs
Subject to prior sale

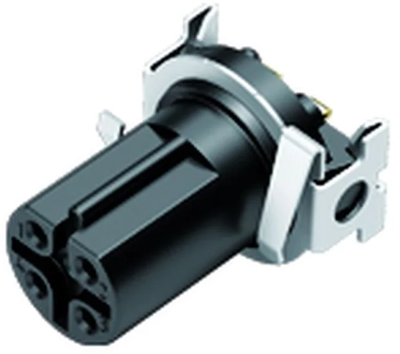

Female receptacle, 09 0442 601 04, binder
M12-B Female receptacle, Contacts: 4, shieldable, SMT, IP67, for SMT.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | B | |
| Orientation | straight | |
| Contact connection | SMD | |
| Pin number | 4 pole | |
| Product type | panel socket | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
