09 0437 87 05 | binder
Panel plug, M12, 5 pole, solder connection, screw locking, straight, 09 0437 87 05
Unit Price (€ / pc.)
5.5216 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
5.52 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5216 €
10 pcs.
4.9623 €
50 pcs.
4.3673 €
100 pcs.
3.8080 €
*incl. VAT plus shipping costs
Subject to prior sale

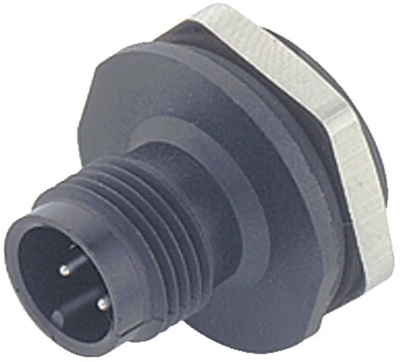

Male panel mount connector, 09 0437 87 05, binder
M12-A Male panel mount connector, Contacts: 5, unshielded, solder, IP67, PG 11.
Technical specifications
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | solder connection | |
| Product type | panel plug | |
| Coding | A | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
