09 0433 16 05 | binder
Panel plug, M12, 5 pole, solder connection, screw locking, straight, 09 0433 16 05
Unit Price (€ / pc.)
6.6164 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.62 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6164 €
10 pcs.
5.9619 €
50 pcs.
5.2479 €
100 pcs.
4.5696 €
*incl. VAT plus shipping costs
Subject to prior sale

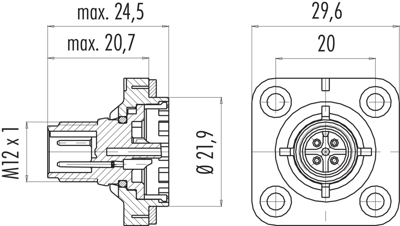

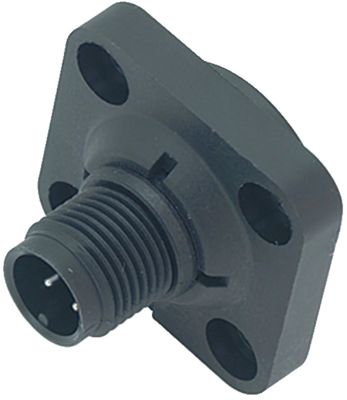

Square male panel mount connector, 09 0433 16 05, binder
M12-A Square male panel mount connector, Contacts: 5, unshielded, solder, IP40, Square.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Type of locking | screw locking | |

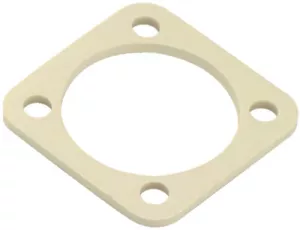

| Additional parts | equipped | |
| Contact connection | solder connection | |
| Product type | panel plug | |
| Coding | A | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP40 | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
