09 0431 16 04 | binder

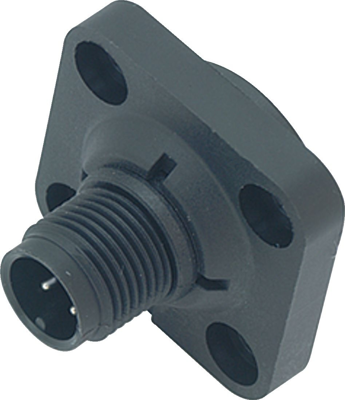

Panel plug, M12, 4 pole, solder connection, screw locking, straight, 09 0431 16 04
Unit Price (€ / pc.)
5.2598 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
5.26 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2598 €
10 pcs.
4.6410 €
100 pcs.
4.0579 €
250 pcs.
3.9032 €
1000 pcs.
3.6533 €
*incl. VAT plus shipping costs
Subject to prior sale
Square male panel mount connector, 09-0431-16-04, Franz Binder
M12-A Square male connector, poles 4, unshielded, solder, IP40, Square
Technical specifications
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Contact connection | solder connection | |
| Product type | panel plug | |
| Coding | A | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP40 | |
| Thread size | M12 | |
| contact surface | CuSnZn |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
