09 0381 601 08 | binder
Panel plug, M12, 8 pole, SMD, screw locking, straight, 09 0381 601 08
Unit Price (€ / pc.)
11.8643 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
11.86 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8643 €
10 pcs.
11.0313 €
50 pcs.
10.2578 €
100 pcs.
9.2225 €
*incl. VAT plus shipping costs
Subject to prior sale

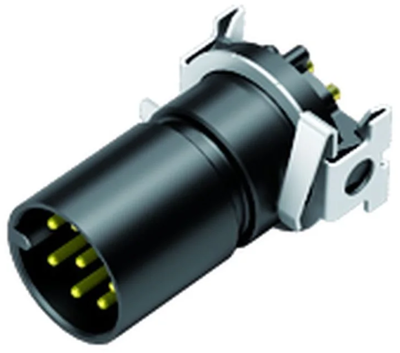

Male receptacle, 09 0381 601 08, binder
M12-A Male receptacle, Contacts: 8, shieldable, SMT, IP67, for SMT.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Orientation | straight | |
| Contact connection | SMD | |
| Pin number | 8 pole | |
| Product type | panel plug | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
