09 0174 320 08 | binder

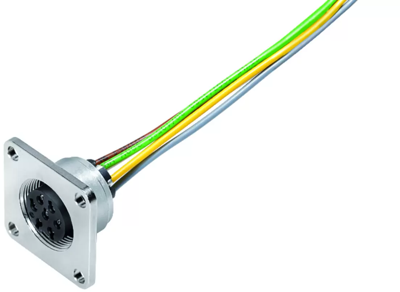

Panel socket, M16, 8 pole, strand connection, screw locking, straight, 09 0174 320 08
Unit Price (€ / pc.)
25.9063 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
25.91 € *
Price list
Quantity
Price per unit*
1 pcs.
25.9063 €
10 pcs.
24.3593 €
25 pcs.
22.8837 €
50 pcs.
21.5033 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 09 0174 320 08, binder
M16 IP67 Female panel mount connector, Contacts: 8 DIN, unshielded, single wires, IP68, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Pin number | 8 pole | |
| Thread size | M16 | |
| contact surface | silver-plated | |
| Degree of protection (IP) | IP67/IP68 | |
| Contact connection | strand connection | |
| Product type | panel socket | |
| Assembly | panel mounting | |
| Version | cable 0.2 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
