09 0127 782 07 | binder

Panel plug, M16, 7 pole, strand connection, screw locking, straight, 09 0127 782 07

Order No.: 70P1496
EAN: 4099891661045
MPN:
09 0127 782 07
Series: 723
09 0127 782 07 binder Sensor-Actuator Connectors Image 1
09 0127 782 07 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.4323 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
20.43 € *
Price list
Quantity
Price per unit*
1 pcs.
20.4323 €
10 pcs.
19.1947 €
50 pcs.
18.0523 €
100 pcs.
16.9694 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 09 0127 782 07, binder

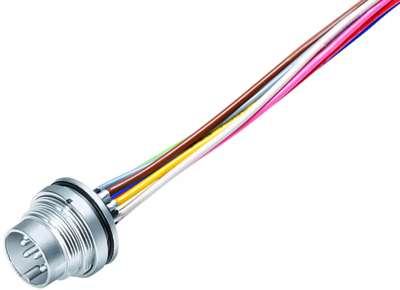

M16 IP67 Male panel mount connector, Contacts: 7, unshielded, single wires, IP67, UL, front fastened.

Technical specifications
Filter Property Value
Pin number 7 pole
Degree of protection (IP) IP67
Version cable 0.2 m
Assembly front mounting
Additional parts equipped
contact surface silver-plated
Orientation straight
Type of locking screw locking
Contact connection strand connection
Thread size M16
Product type panel plug
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
