09 0115 782 05 | binder

Panel plug, M16, 5 pole, strand connection, screw locking, straight, 09 0115 782 05

Order No.: 70P1437
EAN: 4099891660925
MPN:
09 0115 782 05
Series: 723

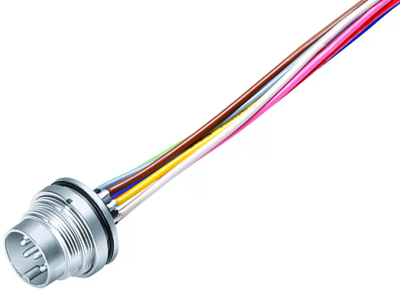

09 0115 782 05 binder Sensor-Actuator Connectors Image 1

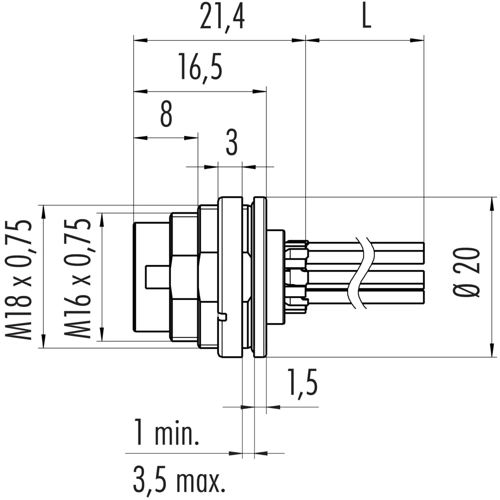

09 0115 782 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.2074 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
17.21 € *
Price list
Quantity
Price per unit*
1 pcs.
17.2074 €
10 pcs.
16.0055 €
50 pcs.
14.8750 €
100 pcs.
13.8397 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 09 0115 782 05, binder

M16 IP67 Male panel mount connector, Contacts: 5, unshielded, single wires, IP67, UL, front fastened.

Technical specifications
Filter Property Value
Pin number 5 pole
Degree of protection (IP) IP67
Version cable 0.2 m
Assembly front mounting
Additional parts equipped
contact surface silver-plated
Orientation straight
Type of locking screw locking
Contact connection strand connection
Thread size M16
Product type panel plug
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
