99 3483 116 08 | binder

Panel plug, M12-flange plug, straight to open end, 8 pole, 0.2 m, 2 A, 99 3483 116 08

Order No.: 70P2990
EAN: 4099891669676
MPN:
99 3483 116 08
Series: 763

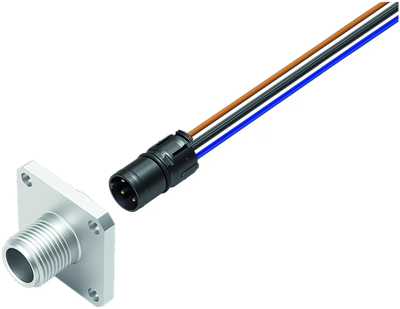

99 3483 116 08 binder Sensor-Actuator Cables Image 1
99 3483 116 08 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
26.7512 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
26.75 € *
Price list
Quantity
Price per unit*
1 pcs.
26.7512 €
10 pcs.
25.1566 €
25 pcs.
23.6572 €
50 pcs.
22.2292 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 99 3483 116 08, binder

M12-A Square male panel mount connector, Contacts: 8, unshielded, single wires, IP69, IP68, IP67, UL, positionable, lockable, Square housing 26 mm.

Technical specifications
Rated current 2 A
Connection (2) open end
Pin number 8 pole
LED display No
max. Voltage 30 V
Degree of protection (IP) IP67/IP69
Connection (1) M12-flange plug, straight
Cable length 0.2 m
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
