99 3433 116 04 | binder

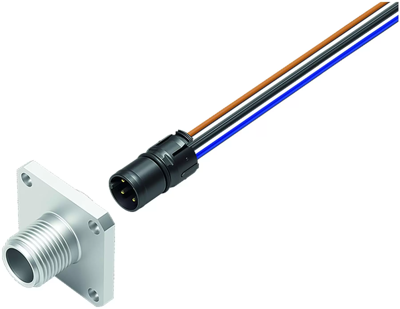

Sensor actuator cable, M12-flange plug, straight to open end, 4 pole, 0.2 m, 4 A, 99 3433 116 04
Unit Price (€ / pc.)
17.3383 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.34 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3383 €
10 pcs.
16.1245 €
50 pcs.
14.9940 €
100 pcs.
13.9468 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 99 3433 116 04, binder

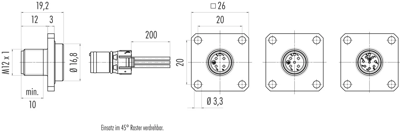

M12-A Square male panel mount connector, Contacts: 4, unshielded, single wires, IP69, IP68, IP67, UL, positionable, lockable, Square housing 26 mm.
Technical specifications
| Cable length | 0.2 m | |
| LED display | No | |
| max. Voltage | 250 V | |
| Degree of protection (IP) | IP67/IP69 | |
| Rated current | 4 A | |
| Connection (2) | open end | |
| Pin number | 4 pole | |
| Connection (1) | M12-flange plug, straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
