79 6230 200 12 | binder
Sensor actuator cable, M16-cable socket, angled to open end, 12 pole, 2 m, PUR, black, 3 A, 79 6230 200 12
Unit Price (€ / pc.)
51.3009 € *
Available: 3 pcs.
Total Price:
51.30 € *
Price list
Quantity
Price per unit*
1 pcs.
51.3009 €
5 pcs.
48.2188 €
15 pcs.
46.3743 €
50 pcs.
44.3394 €
150 pcs.
42.4830 €
*incl. VAT plus shipping costs
Subject to prior sale

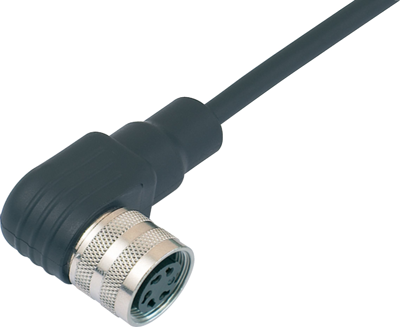

Female angled connector, 79-6230-200-12, Franz Binder

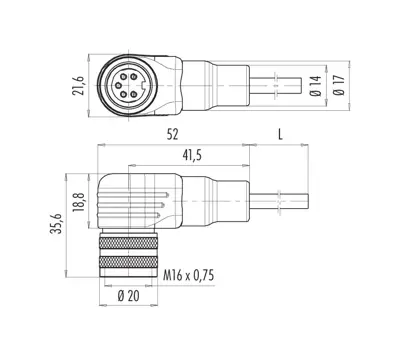

M16 IP67 Female connector, poles 12, unshielded, cable moulded, IP67, PUR black, 12 x 0.25 mm², 2 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M16-cable socket, angled | |
| Connection (2) | open end | |
| Pin number | 12 pole | |
| Cable length | 2 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 3 A |
Download
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
