79 3544 35 05 | binder
Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 5 m, PUR, black, 4 A, 79 3544 35 05
Unit Price (€ / pc.)
39.5794 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
39.58 € *
Price list
Quantity
Price per unit*
1 pcs.
39.5794 €
5 pcs.
37.2113 €
15 pcs.
35.7714 €
50 pcs.
34.1768 €
150 pcs.
32.7607 €
*incl. VAT plus shipping costs
**Subject to prior sale

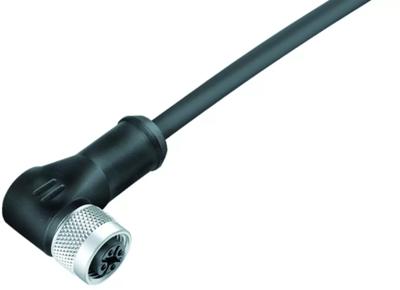

M12-A Female angled connector, 79-3544-35-05, Franz Binder
M12-A Female angled connector, Contacts: 5, shielded, moulded on the cable, IP67, UL, PUR, black, 5 x 0.25 mm², 5 m.

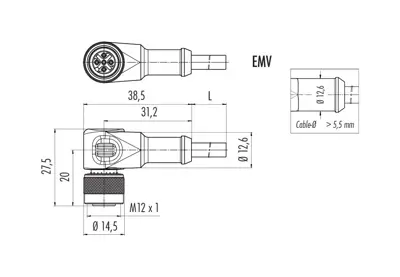

Technical specifications
| Connection (1) | M12-cable socket, angled | |
| Connection (2) | open end | |
| Pin number | 5 pole | |
| Cable length | 5 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
