79 3468 55 06 | binder

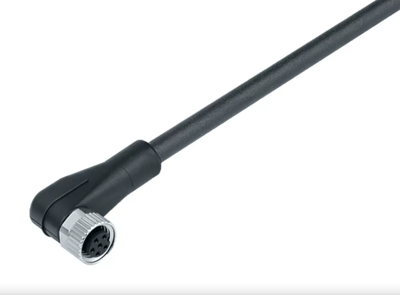

Sensor actuator cable, M8-cable socket, angled to open end, 6 pole, 5 m, PUR, black, 1.5 A, 79 3468 55 06
Unit Price (€ / pc.)
32.6893 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
32.69 € *
Price list
Quantity
Price per unit*
1 pcs.
32.6893 €
10 pcs.
28.7742 €
50 pcs.
26.7988 €
150 pcs.
25.6326 €
500 pcs.
24.3236 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 79-3468-55-06, Franz Binder

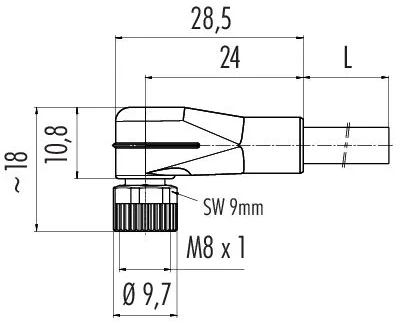

M8 Female connector, poles 6, unshielded, cable moulded, IP67, UL, PUR black, 6 x 0.25 mm², 5 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M8-cable socket, angled | |
| Connection (2) | open end | |
| Pin number | 6 pole | |
| Cable length | 5 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A |
Download
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
