77 7095 0000 10004-0200 | binder

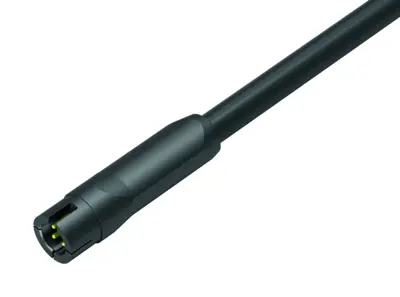

Sensor actuator cable, cable plug, straight to open end, 4 pole, 2 m, PVC, black, 3 A, 77 7095 0000 10004-0200
Unit Price (€ / pc.)
16.8266 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.83 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8266 €
10 pcs.
15.6485 €
25 pcs.
14.3990 €
50 pcs.
12.9472 €
*incl. VAT plus shipping costs
Subject to prior sale

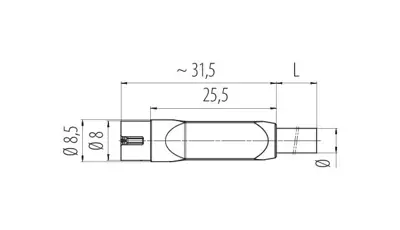

Subminiature circular connectors molded to PVC cable, type Binder 709.
With snap lock. Contact finish: gold-plated. Cable termination:solder contacts, max. 0.25 mm². Degree of protection in mated state (IEC 60529): IP 40. Rated voltage: 60 V. Rated current: 3.0 A. Operating temperatures: - 25 to +70 °C.Cable cross-section: 0.25 mm². Stranded wire structure: 32 x 0.1 mm, Cable diameter: 4.5 mm. Cable resistance: 79.9 ohm/km (20 °C). Color coding of wires used: 1 brown, 2 white, 3 blue, 4 black.
With cable plug connector, type 709.
Technical attributes (type, number of positions, length): 77 7095 0000 10004-0200, 4-position, 2.0 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | cable plug, straight | |
| Connection (2) | open end | |
| Pin number | 4 pole | |
| Cable length | 2 m | |
| Colour | black | |
| Material | PVC | |
| Degree of protection (IP) | IP40 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
