77 3708 0000 50006-0500 | binder
Sensor actuator cable, M8-cable socket, angled to open end, 6 pole, 5 m, PUR, black, 1.5 A, 77 3708 0000 50006-0500
Unit Price (€ / pc.)
28.8099 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
28.81 € *
Price list
Quantity
Price per unit*
1 pcs.
28.8099 €
10 pcs.
27.0725 €
25 pcs.
25.4422 €
50 pcs.
23.9190 €
*incl. VAT plus shipping costs
Subject to prior sale

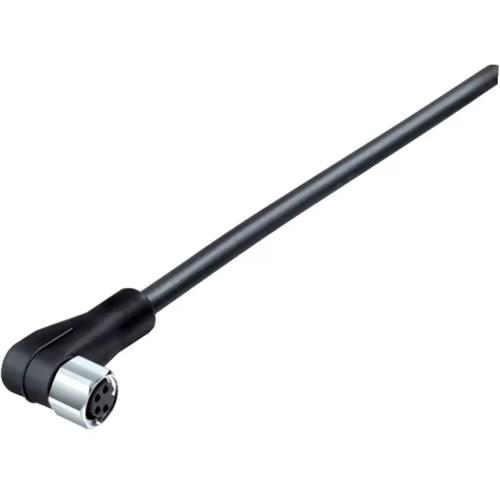

Sensor actuator cable, 77 3708 0000 50006-0500, binder
M8 Female angled connector, Contacts: 6, unshielded, moulded on the cable, IP67, UL, PUR, black, 6 x 0.25 mm², stainless steel, 5 m.
Technical specifications
| Connection (1) | M8-cable socket, angled | |
| Connection (2) | open end | |
| Pin number | 6 pole | |
| Cable length | 5 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
