77 3706 0000 20003-0200 | binder

Sensor actuator cable, M8-cable socket, straight to open end, 3 pole, 2 m, PVC, gray, 4 A, 77 3706 0000 20003-0200

Order No.: 70P2481
EAN: 4099891665012
MPN:
77 3706 0000 20003-0200
Series: 718

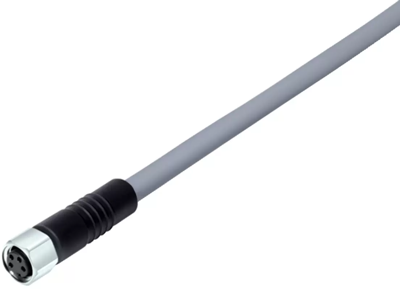

77 3706 0000 20003-0200 binder Sensor-Actuator Cables Image 1

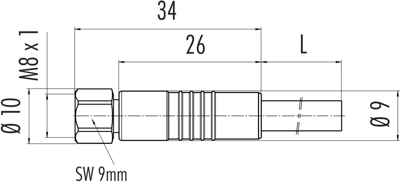

77 3706 0000 20003-0200 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
13.8278 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.83 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8278 €
10 pcs.
12.8520 €
50 pcs.
11.9595 €
100 pcs.
10.7695 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 77 3706 0000 20003-0200, binder

M8 Female cable connector, Contacts: 3, unshielded, moulded on the cable, IP67/IP69K, UL, PVC, grey, 3 x 0.34 mm², stainless steel, 2 m.

Technical specifications
Connection (1) M8-cable socket, straight
Connection (2) open end
Pin number 3 pole
Cable length 2 m
Colour gray
Material PVC
Degree of protection (IP) IP67/IP69K
LED display No
max. Voltage 60 V
Rated current 4 A
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
