77 3608 3405 50003-0200 | binder

Sensor actuator cable, M8-cable plug, straight to M8-cable socket, angled, 3 pole, 2 m, PUR, black, 4 A, 77 3608 3405 50003-0200

Order No.: 70P2452
EAN: 4099891664725
MPN:
77 3608 3405 50003-0200
Series: 718

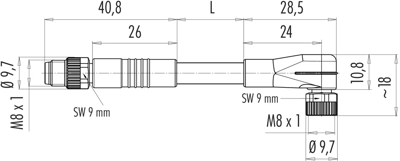

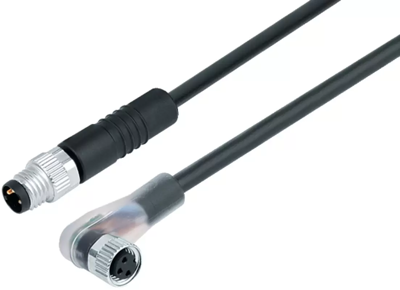

77 3608 3405 50003-0200 binder Sensor-Actuator Cables Image 1
77 3608 3405 50003-0200 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
19.5160 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.52 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5160 €
10 pcs.
18.3379 €
50 pcs.
17.2431 €
100 pcs.
16.2078 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 77 3608 3405 50003-0200, binder

M8 Connecting cable male cable connector - female angled connector with LED, Contacts: 3, unshielded, moulded on the cable, IP67, UL, PUR, black, 3 x 0.34 mm², with LED PNP closer, 2 m.

Technical specifications
Connection (1) M8-cable plug, straight
Connection (2) M8-cable socket, angled
Pin number 3 pole
Cable length 2 m
Colour black
Material PUR
Degree of protection (IP) IP67
LED display Yes
max. Voltage 30 V
Rated current 4 A
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
