77 3534 0000 50708 0500 | binder

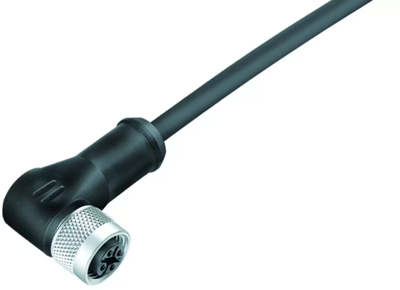

Sensor actuator cable, M12-cable socket, angled to open end, 8 pole, 5 m, PUR, black, 2 A, 77 3534 0000 50708 0500
Unit Price (€ / pc.)
36.9376 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
36.94 € *
Price list
Quantity
Price per unit*
1 pcs.
36.9376 €
10 pcs.
34.7123 €
25 pcs.
32.2847 €
50 pcs.
30.0237 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 77 3534 0000 50708-0500, Franz Binder

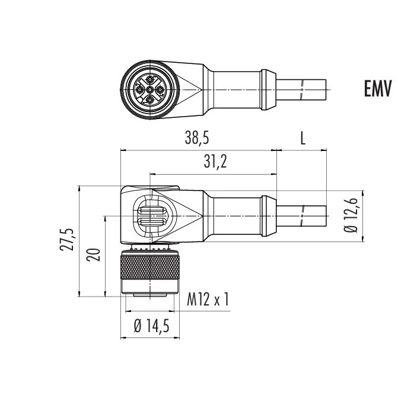

M12-A Female angled connector, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, 8 x 0.25 mm², 5 m.
Technical specifications
| Connection (1) | M12-cable socket, angled | |
| Connection (2) | open end | |
| Pin number | 8 pole | |
| Cable length | 5 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 2 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
