77 3534 0000 50703-0500 | binder

Sensor actuator cable, M12-cable socket, angled to open end, 3 pole, 5 m, PUR, black, 4 A, 77 3534 0000 50703-0500

Order No.: 70P1748
EAN: 4099891662363
MPN:
77 3534 0000 50703-0500
Series: 763

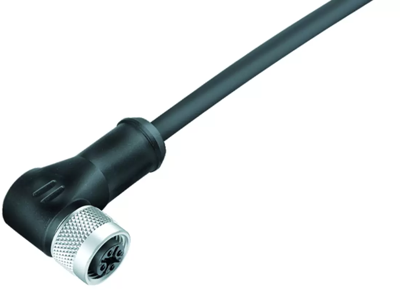

77 3534 0000 50703-0500 binder Sensor-Actuator Cables Image 1

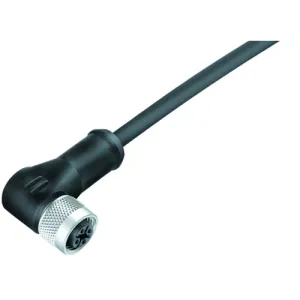

77 3534 0000 50703-0500 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
27.7151 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
27.72 € *
Price list
Quantity
Price per unit*
1 pcs.
27.7151 €
10 pcs.
26.0372 €
25 pcs.
24.4783 €
50 pcs.
23.0146 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor actuator cable, 77 3534 0000 50703-0500, binder

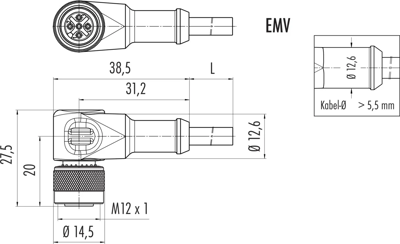

M12-A Female angled connector, Contacts: 3, shielded, moulded on the cable, IP67, UL, PUR, black, 3 x 0.34 mm², 5 m.

Technical specifications
Connection (1) M12-cable socket, angled
Connection (2) open end
Pin number 3 pole
Cable length 5 m
Colour black
Material PUR
Degree of protection (IP) IP67
LED display No
max. Voltage 250 V
Rated current 4 A
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
