77 3529 0000 50712-0500 | binder

Sensor actuator cable, M12-cable plug, straight to open end, 12 pole, 5 m, PUR, black, 1.5 A, 77 3529 0000 50712-0500

Order No.: 70P2763
EAN: 4099891667535
MPN:
77 3529 0000 50712-0500
Series: 763

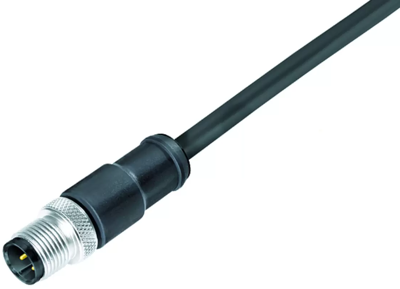

77 3529 0000 50712-0500 binder Sensor-Actuator Cables Image 1

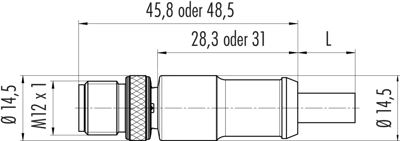

77 3529 0000 50712-0500 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
45.8983 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
45.90 € *
Price list
Quantity
Price per unit*
1 pcs.
45.8983 €
10 pcs.
43.6016 €
25 pcs.
40.9836 €
50 pcs.
38.1157 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor actuator cable, 77 3529 0000 50712-0500, binder

M12-A Male cable connector, Contacts: 12, shielded, moulded on the cable, IP67, UL, PUR, black, 12 x 0.25 mm², 5 m.

Technical specifications
Connection (1) M12-cable plug, straight
Connection (2) open end
Pin number 12 pole
Cable length 5 m
Colour black
Material PUR
Degree of protection (IP) IP67
LED display No
max. Voltage 30 V
Rated current 1.5 A
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
