77 3505 0000 20708-0500 | binder

Sensor actuator cable, M8-cable plug, straight to open end, 8 pole, 5 m, PVC, gray, 1.5 A, 77 3505 0000 20708-0500

Order No.: 70P2429
EAN: 4099891664497
MPN:
77 3505 0000 20708-0500
Series: 718

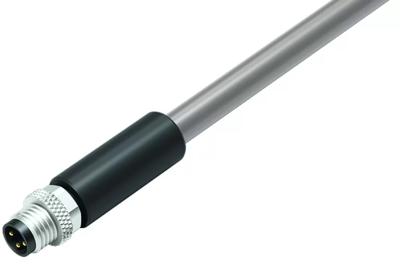

77 3505 0000 20708-0500 binder Sensor-Actuator Cables Image 1
77 3505 0000 20708-0500 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
45.0534 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
45.05 € *
Price list
Quantity
Price per unit*
1 pcs.
45.0534 €
10 pcs.
42.8043 €
25 pcs.
40.2339 €
50 pcs.
37.4017 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor actuator cable, 77 3505 0000 20708-0500, binder

M8 Male cable connector, Contacts: 8, shielded, moulded on the cable, IP67, UL, PVC, grey, 8 x 0.25 mm², 5 m.

Technical specifications
Connection (1) M8-cable plug, straight
Connection (2) open end
Pin number 8 pole
Cable length 5 m
Colour gray
Material PVC
Degree of protection (IP) IP67
LED display No
max. Voltage 30 V
Rated current 1.5 A
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
