77 3505 0000 20703-0500 | binder

Sensor actuator cable, M8-cable plug, straight to open end, 3 pole, 5 m, PVC, gray, 4 A, 77 3505 0000 20703-0500

Order No.: 70P2423
EAN: 4099891664435
MPN:
77 3505 0000 20703-0500
Series: 718

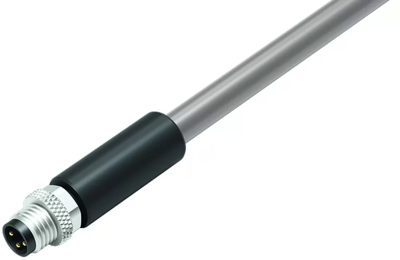

77 3505 0000 20703-0500 binder Sensor-Actuator Cables Image 1
77 3505 0000 20703-0500 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
31.8920 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
31.89 € *
Price list
Quantity
Price per unit*
1 pcs.
31.8920 €
10 pcs.
29.9761 €
25 pcs.
27.8817 €
50 pcs.
25.9301 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 77 3505 0000 20703-0500, binder

M8 Male cable connector, Contacts: 3, shielded, moulded on the cable, IP67, UL, PVC, grey, 3 x 0.34 mm², 5 m.

Technical specifications
Connection (1) M8-cable plug, straight
Connection (2) open end
Pin number 3 pole
Cable length 5 m
Colour gray
Material PVC
Degree of protection (IP) IP67
LED display No
max. Voltage 60 V
Rated current 4 A
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
