77 3430 0000 70003-0500 | binder
Sensor actuator cable, M12-cable socket, straight to open end, 3 pole, 5 m, TMPU, black, 4 A, 77 3430 0000 70003-0500
Unit Price (€ / pc.)
18.9210 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.92 € *
Price list
Quantity
Price per unit*
1 pcs.
18.9210 €
10 pcs.
17.7905 €
50 pcs.
16.7195 €
100 pcs.
15.7318 €
*incl. VAT plus shipping costs
**Subject to prior sale

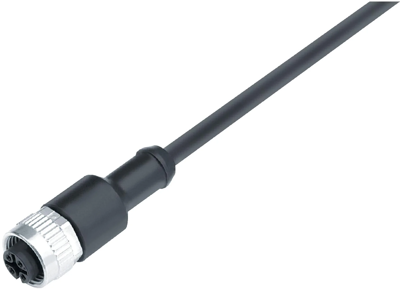

Sensor actuator cable, 77 3430 0000 70003-0500, binder

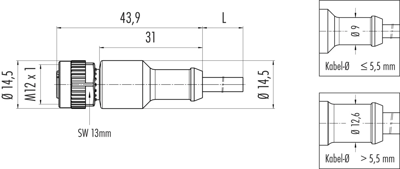

M12-A Female cable connector, Contacts: 3, unshielded, moulded on the cable, IP68, TMPU, self-extinguishing, black, 3 x 0.34 mm², 5 m.
Technical specifications
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Pin number | 3 pole | |
| Cable length | 5 m | |
| Colour | black | |
| Material | TMPU | |
| Degree of protection (IP) | IP68 | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
