77 3430 0000 20712-0500 | binder

Sensor actuator cable, M12-cable socket, straight to open end, 12 pole, 5 m, PVC, gray, 1.5 A, 77 3430 0000 20712-0500

Order No.: 70P2704
EAN: 4099891666941
MPN:
77 3430 0000 20712-0500
Series: 763

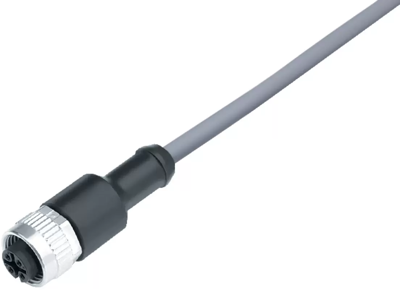

77 3430 0000 20712-0500 binder Sensor-Actuator Cables Image 1

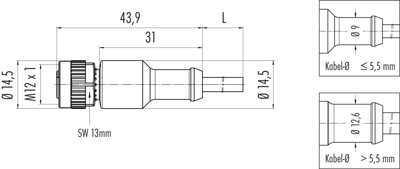

77 3430 0000 20712-0500 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
44.2085 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
44.21 € *
Price list
Quantity
Price per unit*
1 pcs.
44.2085 €
10 pcs.
42.0070 €
25 pcs.
39.4842 €
50 pcs.
36.7115 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor actuator cable, 77 3430 0000 20712-0500, binder

M12-A Female cable connector, Contacts: 12, unshielded, moulded on the cable, IP69K, UL, PVC, grey, 12 x 0.25 mm², 5 m.

Technical specifications
Connection (1) M12-cable socket, straight
Connection (2) open end
Pin number 12 pole
Cable length 5 m
Colour gray
Material PVC
Degree of protection (IP) IP69K
LED display No
max. Voltage 30 V
Rated current 1.5 A
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
