77 3405 0000 50012-0500 | binder

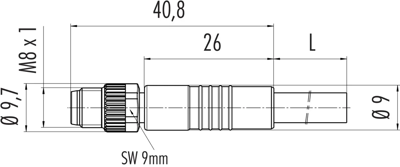

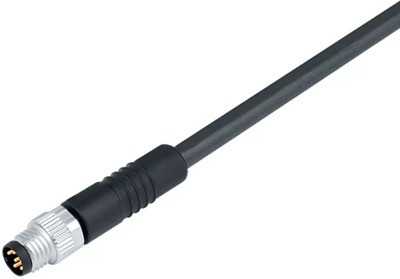

Sensor actuator cable, M8-cable plug, straight to open end, 12 pole, 5 m, PUR, black, 1 A, 77 3405 0000 50012-0500

Order No.: 70P2409
EAN: 4099891664299
MPN:
77 3405 0000 50012-0500
Series: 718
77 3405 0000 50012-0500 binder Sensor-Actuator Cables Image 1
77 3405 0000 50012-0500 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
34.1173 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
34.12 € *
Price list
Quantity
Price per unit*
1 pcs.
34.1173 €
10 pcs.
32.0943 €
25 pcs.
29.8333 €
50 pcs.
27.7508 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor actuator cable, 77 3405 0000 50012-0500, binder

M8 Male cable connector, Contacts: 12, unshielded, moulded on the cable, IP67, UL, PUR, black, 12 x 0.09 mm², 5 m.

Technical specifications
Connection (1) M8-cable plug, straight
Connection (2) open end
Pin number 12 pole
Cable length 5 m
Colour black
Material PUR
Degree of protection (IP) IP67
LED display No
max. Voltage 30 V
Rated current 1 A
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
