77 0690 0000 50704 0500 | binder

Sensor actuator cable, M12-cable socket, straight to open end, 3 pole + PE, 5 m, PUR, black, 12 A, 77 0690 0000 50704 0500

Order No.: 67F5897
EAN: 4099891659264
MPN:
77 0690 0000 50704 0500
Series: 814
77 0690 0000 50704 0500 binder Sensor-Actuator Cables
Image may differ
Unit Price (€ / pc.)
48.4925 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
48.49 € *
Price list
Quantity
Price per unit*
1 pcs.
48.4925 €
10 pcs.
46.0649 €
25 pcs.
43.3041 €
50 pcs.
40.2696 €
*incl. VAT plus shipping costs
**Subject to prior sale

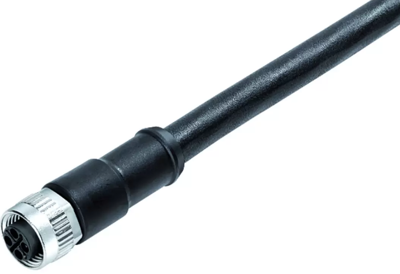

Sensor actuator cable, 77 0690 0000 50704-0500, Franz Binder

M12-S Female cable connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, PUR, 4 x 1.50 mm², 5 m.

Technical specifications
Connection (1) M12-cable socket, straight
Connection (2) open end
Pin number 3 pole + PE
Cable length 5 m
Colour black
Material PUR
Degree of protection (IP) IP68
LED display No
max. Voltage 630 V
Rated current 12 A
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
