76 6618 1111 00004-0200 | binder

Panel socket, M8, 4 pole, straight, 76 6618 1111 00004-0200

Order No.: 70P1176
EAN: 4099891660260
MPN:
76 6618 1111 00004-0200
Series: 718

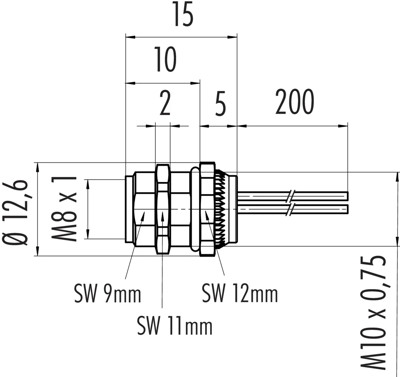

76 6618 1111 00004-0200 binder Sensor-Actuator Connectors Image 1

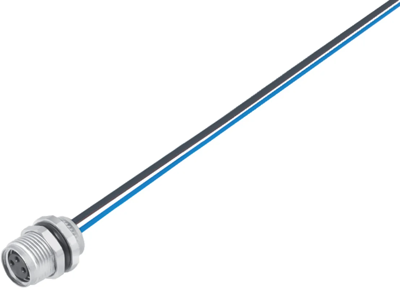

76 6618 1111 00004-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.8405 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
11.84 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8405 €
10 pcs.
11.0075 €
50 pcs.
10.2340 €
100 pcs.
9.2106 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 6618 1111 00004-0200, binder

M8 Female panel mount connector, Contacts: 4, unshielded, single wires, IP67, UL, M10x0.75, front fastened.

Technical specifications
Orientation straight
Additional parts equipped
Product type panel socket
Pin number 4 pole
Thread size M8
Version cable 0.2 m
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
