76 6518 1111 00008-0200 | binder

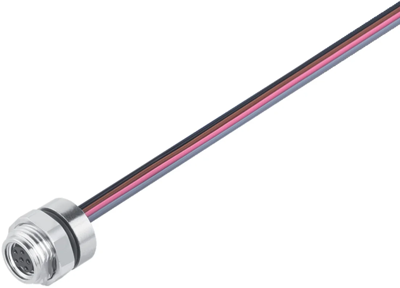

Sensor actuator cable, M8-flange socket, straight to open end, 8 pole, 0.2 m, 1.5 A, 76 6518 1111 00008-0200
Unit Price (€ / pc.)
24.3355 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
24.34 € *
Price list
Quantity
Price per unit*
1 pcs.
24.3355 €
10 pcs.
22.8837 €
25 pcs.
21.5152 €
50 pcs.
20.2181 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 76 6518 1111 00008-0200, binder

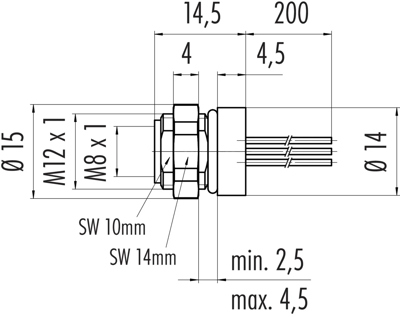

M8 Female panel mount connector, Contacts: 8, unshielded, single wires, IP67/IP69K, UL, M12x1.0, front fastened.
Technical specifications
| Cable length | 0.2 m | |
| LED display | No | |
| max. Voltage | 30 V | |
| Degree of protection (IP) | IP67/IP69K | |
| Rated current | 1.5 A | |
| Connection (2) | open end | |
| Pin number | 8 pole | |
| Connection (1) | M8-flange socket, straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
