76 2531 1111 00012-0200 | binder

Panel plug, M12-flange plug, straight to open end, 12 pole, 0.2 m, 1.5 A, 76 2531 1111 00012-0200

Order No.: 70P2598
EAN: 4099891665951
MPN:
76 2531 1111 00012-0200
Series: 763

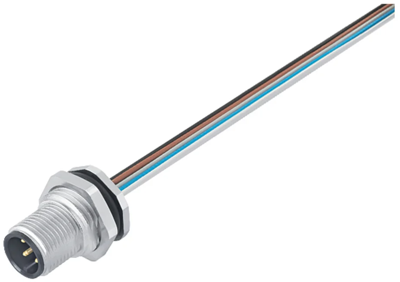

76 2531 1111 00012-0200 binder Sensor-Actuator Connectors Image 1

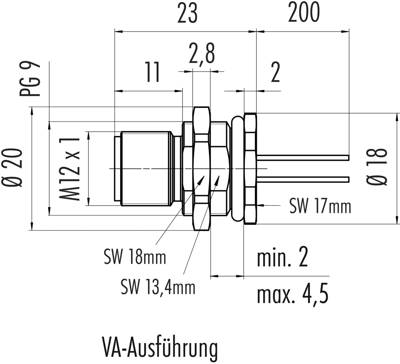

76 2531 1111 00012-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
43.3755 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
43.38 € *
Price list
Quantity
Price per unit*
1 pcs.
43.3755 €
10 pcs.
40.7694 €
25 pcs.
37.9253 €
50 pcs.
35.2597 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 2531 1111 00012-0200, binder

M12-A Male panel mount connector, Contacts: 12, unshielded, single wires, IP68, UL, PG 9, front fastened, stainless steel.

Technical specifications
Orientation straight
Additional parts equipped
Product type panel plug
Pin number 12 pole
Thread size M12
Version cable 0.2 m
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
