76 2131 0111 00004-0200 | binder

Panel plug, M12-flange plug, straight to open end, 4 pole, 0.2 m, 4 A, 76 2131 0111 00004-0200

Order No.: 70P1666
EAN: 4099891661540
MPN:
76 2131 0111 00004-0200
Series: 763

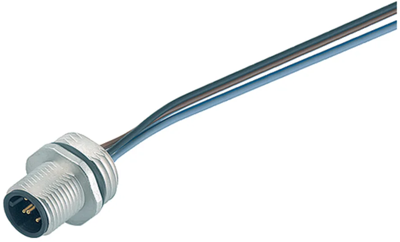

76 2131 0111 00004-0200 binder Sensor-Actuator Connectors Image 1
76 2131 0111 00004-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.6703 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.67 € *
Price list
Quantity
Price per unit*
1 pcs.
20.6703 €
10 pcs.
19.4208 €
50 pcs.
18.2546 €
100 pcs.
17.1598 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 2131 0111 00004-0200, binder

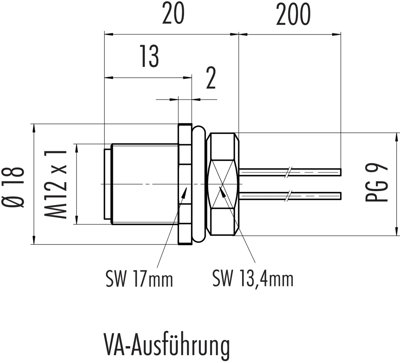

M12-A Male panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, PG 9, stainless steel.

Technical specifications
Orientation straight
Additional parts equipped
Product type panel plug
Pin number 4 pole
Thread size M12
Version cable 0.2 m
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
