76 0134 0011 00105-0200 | binder

Panel socket, M12, 5 pole, straight, 76 0134 0011 00105-0200

Order No.: 70P1918
EAN: 4099891663087
MPN:
76 0134 0011 00105-0200
Series: 766

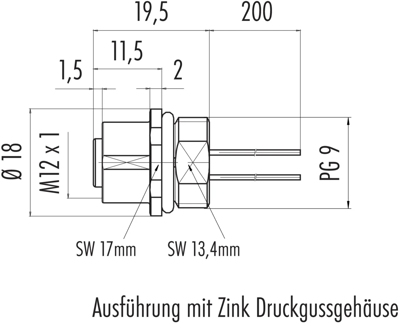

76 0134 0011 00105-0200 binder Sensor-Actuator Connectors Image 1

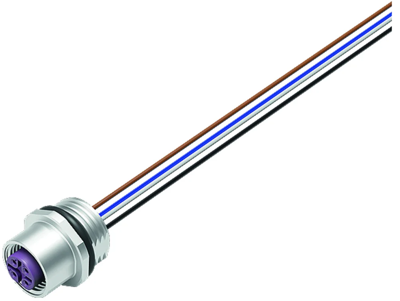

76 0134 0011 00105-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.4930 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.49 € *
Price list
Quantity
Price per unit*
1 pcs.
17.4930 €
10 pcs.
16.2673 €
50 pcs.
15.1368 €
100 pcs.
14.0777 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 0134 0011 00105-0200, binder

M12-B Female panel mount connector, Contacts: 5, unshielded, single wires, IP68, UL, PG 9.

Technical specifications
Orientation straight
Additional parts equipped
Product type panel socket
Pin number 5 pole
Thread size M12
Version cable 0.2 m
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
