70 3784 706 08 | binder

Panel socket, M12-flange socket, straight to open end, 8 pole, 0.5 m, PUR, green, 0.5 A, 70 3784 706 08

Order No.: 66P2072
EAN: 4099879095121
MPN:
70 3784 706 08
Series: 876

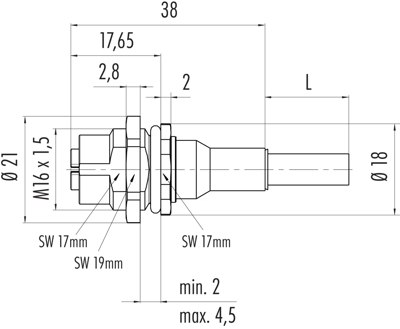

70 3784 706 08 binder Sensor-Actuator Cables Image 1

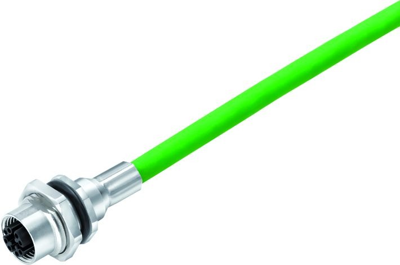

70 3784 706 08 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
56.6321 € *
Available: 45 pcs.
Total Price:
56.63 € *
Price list
Quantity
Price per unit*
1 pcs.
56.6321 €
5 pcs.
53.2406 €
15 pcs.
51.1938 €
50 pcs.
48.9328 €
150 pcs.
46.8860 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 70-3784-706-08, Franz Binder

M12-X Female , poles 8, shielded, cable assembled, Ethernet, PUR, 4 x 2 AWG 26/7, 0.5 m

Technical specifications
Connection (1) M12-flange socket, straight
Connection (2) open end
Pin number 8 pole
Cable length 0.5 m
Colour green
Material PUR
Degree of protection (IP) IP67
LED display No
max. Voltage 60 V
Rated current 0.5 A
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
