09 2450 300 05 | binder

Panel socket, 7/8"-flange socket, straight to open end, 4 pole + PE, 0.2 m, 6 A, 09 2450 300 05

Order No.: 66P1073
EAN: 4099879087775
MPN:
09 2450 300 05
Series: 820

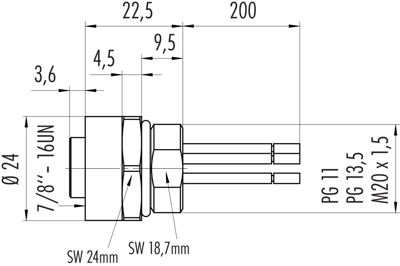

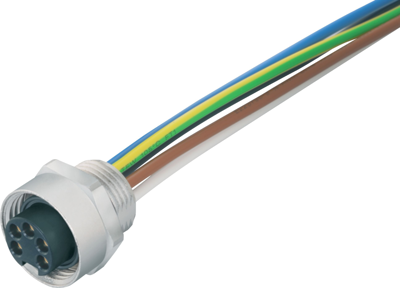

09 2450 300 05 binder Sensor-Actuator Cables Image 1
09 2450 300 05 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
24.5140 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.51 € *
Price list
Quantity
Price per unit*
1 pcs.
24.5140 €
10 pcs.
21.5628 €
50 pcs.
20.0872 €
150 pcs.
19.2066 €
500 pcs.
18.2308 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09-2450-300-05, Franz Binder

7/8" Female connector, poles 4+PE, unshielded, single wires, IP68, UL, VDE, PG 13.5

Technical specifications
Rated current 6 A
Connection (2) open end
Pin number 4 pole + PE
LED display No
max. Voltage 300 V
Degree of protection (IP) IP68
Connection (1) 7/8"-flange socket, straight
Cable length 0.2 m
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
