09 2447 300 03 | binder

Panel plug, 7/8"-flange plug, straight to open end, 2 pole + PE, 0.2 m, 10 A, 09 2447 300 03

Order No.: 66P1055
EAN: 4099879087720
MPN:
09 2447 300 03
Series: 820

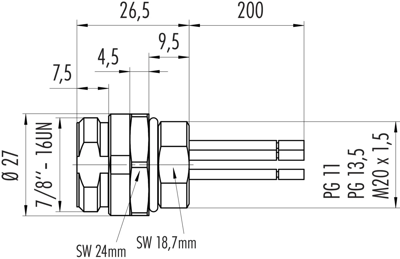

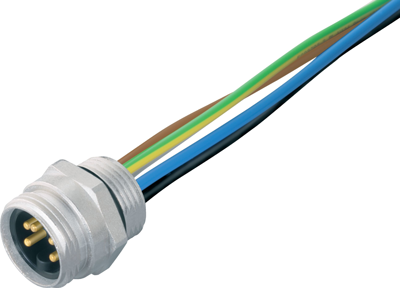

09 2447 300 03 binder Sensor-Actuator Cables Image 1
09 2447 300 03 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
20.5156 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.52 € *
Price list
Quantity
Price per unit*
1 pcs.
20.5156 €
10 pcs.
18.0523 €
50 pcs.
16.8147 €
150 pcs.
16.0888 €
500 pcs.
15.2677 €
*incl. VAT plus shipping costs
Subject to prior sale

Male panel mount connector, 09-2447-300-03, Franz Binder

7/8" Male connector, poles 2+PE, unshielded, single wires, IP68, UL, VDE, PG 13.5

Technical specifications
Rated current 10 A
Connection (2) open end
Pin number 2 pole + PE
LED display No
max. Voltage 300 V
Degree of protection (IP) IP68
Connection (1) 7/8"-flange plug, straight
Cable length 0.2 m
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
