09 0642 800 05 | binder

Panel socket, M12-flange socket, straight to open end, 4 pole + FE, 0.2 m, 16 A, 09 0642 800 05

Order No.: 70P3120
EAN: 4099891670740
MPN:
09 0642 800 05
Series: 823

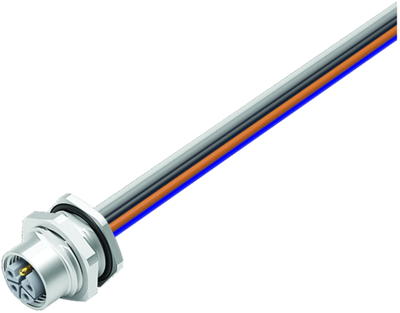

09 0642 800 05 binder Sensor-Actuator Connectors Image 1

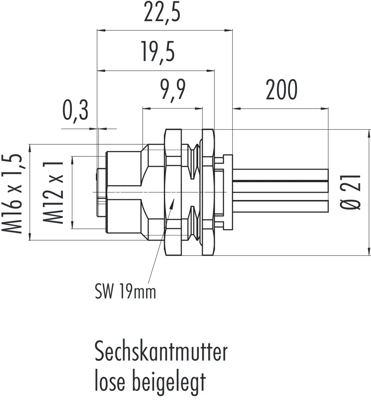

09 0642 800 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.8238 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
23.82 € *
Price list
Quantity
Price per unit*
1 pcs.
23.8238 €
10 pcs.
22.3958 €
50 pcs.
21.0511 €
100 pcs.
19.7778 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 09 0642 800 05, binder

M12-L Female panel mount connector, Contacts: 4+FE, unshielded, single wires, IP68, M16x1.5, front fastened.

Technical specifications
Orientation straight
Additional parts equipped
Product type panel socket
Pin number 4 pole + FE
Thread size M12
Version cable 0.2 m
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
