99 9216 490 05 | binder
Panel socket, 5 pole, THT, snap lock, straight, 99 9216 490 05
Unit Price (€ / pc.)
10.6862 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.69 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6862 €
10 pcs.
9.9365 €
50 pcs.
9.2344 €
100 pcs.
8.3181 €
*incl. VAT plus shipping costs
Subject to prior sale

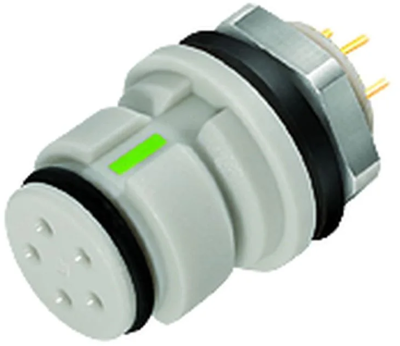

Female panel mount connector, 99 9216 490 05, binder
Snap-In IP67 (subminiature) Female panel mount connector, Contacts: 5, unshielded, THT, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | snap lock | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Contact connection | THT | |
| Pin number | 5 pole | |
| Version | panel socket | |
| Additional parts | equipped | |
| Shell Material | PA | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
