99 9216 00 05 | binder

Panel socket, 5 pole, solder cup, snap lock, straight, 99 9216 00 05

Order No.: 67F8134
EAN: 4099889733150
MPN:
99 9216 00 05
Series: 620

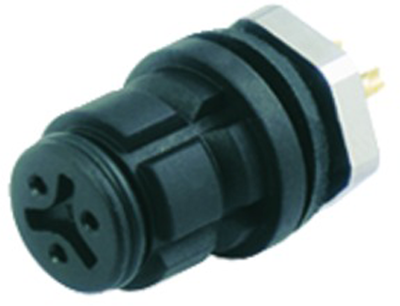

99 9216 00 05 binder Other Circular Connectors Image 1
99 9216 00 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.2943 € *
Available: 58 pcs.
Total Price:
8.29 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2943 €
10 pcs.
7.2947 €
100 pcs.
6.3903 €
250 pcs.
6.1523 €
1000 pcs.
5.7596 €
*incl. VAT plus shipping costs
Subject to prior sale

SubMiniature circular connector, type Binder 620.

With snap lock; Male contact: CuZn. Female contact: CuSn. Contact finish: gold-plated. Connection: soldering, max. 0.25 mm². Cable outlet: 3.0 to 5.0 mm. Contact carrier and housing: PA 66 to UL 94 V-0. Rated voltage: 60 V. Rated current: 2.0 A. Test surge voltage: 910 V. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +85 °C. Insertion/removal cycles: min. 500.

Female panel mount connector, type 620.

For panel thickness from 1.0 to 3.0 mm. the adapters for front-panel mounting are described below and are available on separate order.

Technical attributes (type, number of poles): 99-9216-00-05, 5-pole

Technical specifications
Version panel socket
Cable cross-section 0.25 mm²
Pin number 5 pole
Orientation straight
Contact connection solder cup
Type of locking snap lock
Cable diameter 3 to 5 mm
Assembly PCB mounting
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
