99 9214 460 05 | binder
Jack, 5 pole, solder connection, snap lock, straight, 99 9214 460 05
Unit Price (€ / pc.)
11.0789 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
11.08 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0789 €
10 pcs.
10.2816 €
50 pcs.
9.5795 €
100 pcs.
8.6156 €
*incl. VAT plus shipping costs
Subject to prior sale

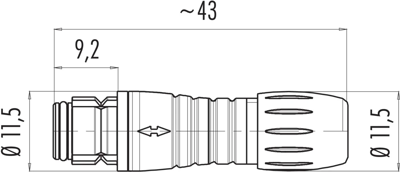

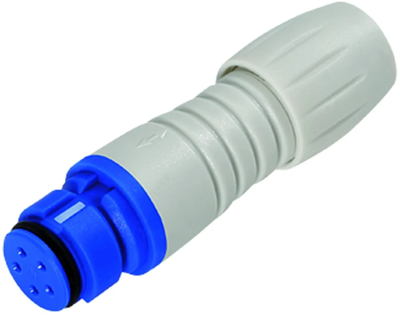

Female cable connector, 99 9214 460 05, binder
Snap-In IP67 (subminiature) Female cable connector, Contacts: 5, 3.5-5.0 mm, unshielded, solder, IP67.
Technical specifications
| Version | jack | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 5 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | snap lock | |
| Cable diameter | 3.5 to 5 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
