99 9213 450 05 | binder

Plug, 5 pole, solder connection, snap lock, straight, 99 9213 450 05

Order No.: 70P2293
EAN: 4099891705831
MPN:
99 9213 450 05
Series: 620

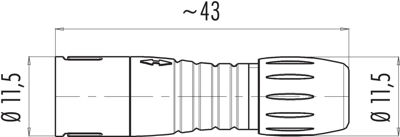

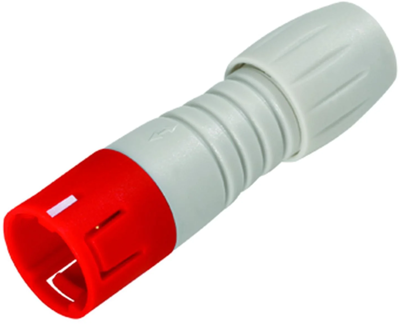

99 9213 450 05 binder Other Circular Connectors Image 1
99 9213 450 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.8889 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.89 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8889 €
10 pcs.
9.1987 €
50 pcs.
8.5680 €
100 pcs.
7.6993 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 9213 450 05, binder

Snap-In IP67 (subminiature) Male cable connector, Contacts: 5, 3.5-5.0 mm, unshielded, solder, IP67.

Technical specifications
Version plug
Cable cross-section 0.25 mm²
Pin number 5 pole
Orientation straight
Contact connection solder connection
Type of locking snap lock
Cable diameter 3.5 to 5 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
