99 9207 00 03 | binder

Panel plug, 3 pole, solder cup, snap lock, straight, 99 9207 00 03

Order No.: 67F8120
EAN: 4099889733099
MPN:
99 9207 00 03
Series: 620

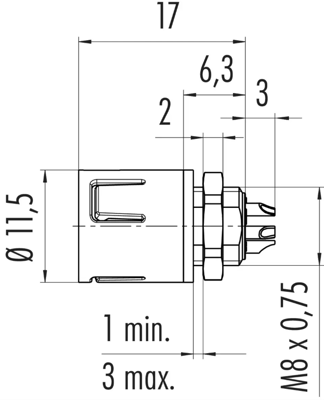

99 9207 00 03 binder Other Circular Connectors Image 1

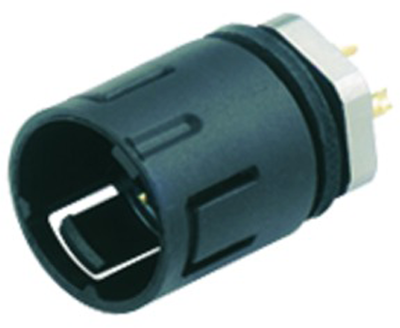

99 9207 00 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.2364 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.24 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2364 €
10 pcs.
3.8199 €
50 pcs.
3.3558 €
100 pcs.
2.9155 €
*incl. VAT plus shipping costs
Subject to prior sale

SubMiniature circular connector, type Binder 620.

With snap lock; Male contact: CuZn. Female contact: CuSn. Contact finish: gold-plated. Connection: soldering, max. 0.25 mm². Cable outlet: 3.0 to 5.0 mm. Contact carrier and housing: PA 66 to UL 94 V-0. Rated voltage: 125 V. Rated current: 3.0 A. Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +85 °C. Insertion/removal cycles: min. 500.

Male panel mount connectors, type 620.

For panel thickness from 1.0 to 3.0 mm. the adapters for front-panel mounting are described below and are available on separate order.

Technical attributes (type, number of poles): 99-9207-00-03, 3-pole

Technical specifications
Filter Property Value
Version panel plug
Cable cross-section 0.25 mm²
Pin number 3 pole
Orientation straight
Contact connection solder cup
Type of locking snap lock
Cable diameter 3 to 5 mm
Assembly PCB mounting
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
