99 9205 00 03 | binder

Plug, 3 pole, solder cup, snap lock, straight, 99 9205 00 03

Order No.: 67F8100
EAN: 4099889733013
MPN:
99 9205 00 03
Series: 620

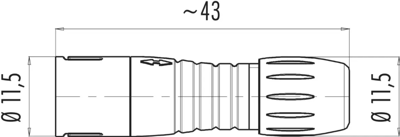

99 9205 00 03 binder Other Circular Connectors Image 1

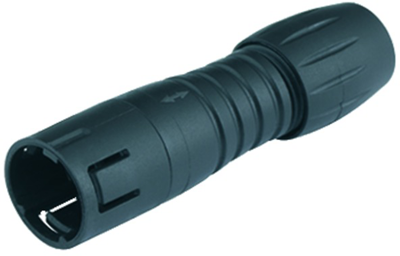

99 9205 00 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.5807 € *
Available: 15 pcs.
Available in 5 Days: 76 pcs. - if ordered today
Total Price:
6.58 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5807 €
10 pcs.
5.8072 €
100 pcs.
5.0813 €
250 pcs.
4.8909 €
1000 pcs.
4.5815 €
*incl. VAT plus shipping costs
Subject to prior sale

SubMiniature circular connector, type Binder 620.

With snap lock; Male contact: CuZn. Female contact: CuSn. Contact finish: gold-plated. Connection: soldering, max. 0.25 mm². Cable outlet: 3.0 to 5.0 mm. Contact carrier and housing: PA 66 to UL 94 V-0. Rated voltage: 125 V. Rated current: 3.0 A. Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +85 °C. Insertion/removal cycles: min. 500.

Cable plug connectors, type 620.

Technical attributes (type, number of poles): 99-9205-00-03, 3-pole

Technical specifications
Filter Property Value
Version plug
Cable cross-section 0.25 mm²
Pin number 3 pole
Orientation straight
Contact connection solder cup
Type of locking snap lock
Cable diameter 3 to 5 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
