99 9136 00 12 | binder

Panel socket, 12 pole, solder cup, snap lock, straight, 99 9136 00 12

Order No.: 67F8076
EAN: 4099889732986
MPN:
99 9136 00 12
Series: 720

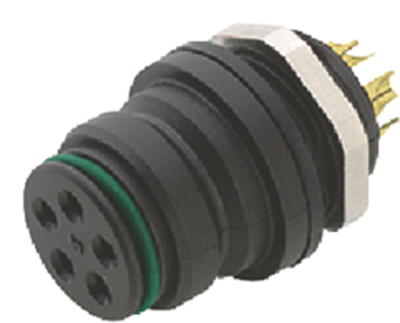

99 9136 00 12 binder Other Circular Connectors Image 1

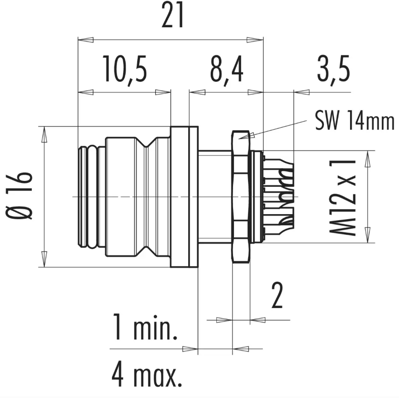

99 9136 00 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.0309 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
12.03 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0309 €
10 pcs.
11.1979 €
50 pcs.
10.4006 €
100 pcs.
9.3772 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, type Binder 720.

With snap lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Solder connections: max. 0.25 mm². Contact block and housing: PA 66 to UL 94 V-0. Test surge voltage: 910 V. Contact resistance: 3.0 mohm. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +80 °C. Insertion/removal cycles: min. 500.

Female panel mount connector, solder terminals, type 720.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C), cable outlet): 99-9136-00-12, 12p, 60 V, 2.0 A

Technical specifications
Filter Property Value
Type of locking snap lock
contact surface gold-plated
Assembly PCB mounting
Contact connection solder cup
Cable cross-section 0.25 mm²
Pin number 12 pole
Version panel socket
Additional parts equipped
Shell Material PA
Orientation straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
