99 9135 00 12 | binder

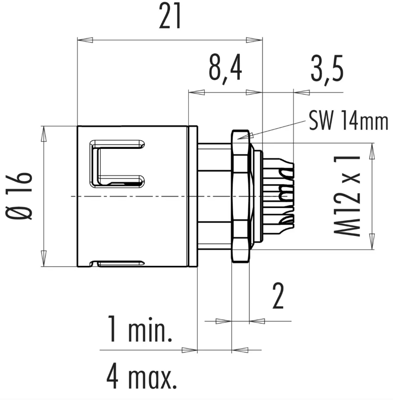

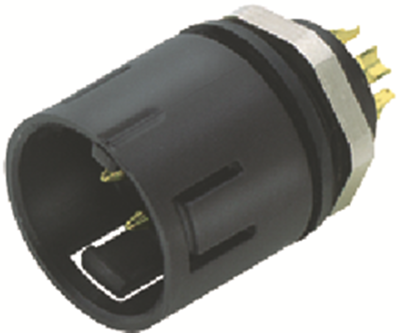

Panel plug, 12 pole, solder cup, snap lock, straight, 99 9135 00 12
Unit Price (€ / pc.)
12.0904 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
12.09 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0904 €
10 pcs.
11.2336 €
50 pcs.
10.3411 €
100 pcs.
9.4129 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, type Binder 720.
With snap lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Solder connections: max. 0.25 mm². Contact block and housing: PA 66 to UL 94 V-0. Test surge voltage: 910 V. Contact resistance: 3.0 mohm. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +80 °C. Insertion/removal cycles: min. 500.
Male panel mount connectors, solder terminals, type 720.
The adapters for front-panel mounting are described below and are available on separate order.
Technical attributes (type, number of poles, rated voltage/rated current (40 °C), cable outlet): 99-9135-00-12, 12p, 60 V, 2.0 A
Technical specifications
| Version | Einbaustecker | |
| Additional parts | bestückt | |
| Shell Material | PA | |
| Contact connection | Lötkelch | |
| contact surface | vergoldet | |
| Cable cross-section | 0,25 mm² | |
| Assembly | Leiterplattenmontage | |
| Orientation | gerade | |
| Pin number | 12-polig | |
| Type of locking | Schnappverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
