99 9134 03 12 | binder
Jack, 12 pole, solder cup, snap lock, straight, 99 9134 03 12
Unit Price (€ / pc.)
12.8401 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
12.84 € *
Price list
Quantity
Price per unit*
1 pcs.
12.8401 €
10 pcs.
11.9595 €
50 pcs.
11.1146 €
100 pcs.
9.9960 €
*incl. VAT plus shipping costs
Subject to prior sale

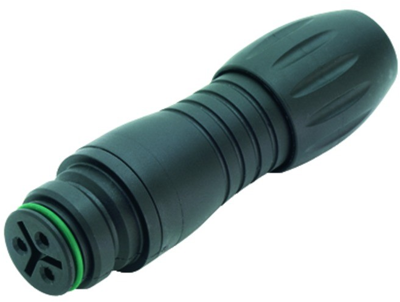

Female connector, 99-9134-03-12, Binder
Snap-In IP67 female cable connector, Contacts: 12, 2.5 - 4.0 mm, shielding is not possible, solder, IP67, VDE
Technical Data
- Contact connection: Solder cup
- Rated voltage: 60 V
- Number of positions: 12
- Housing material: PA
- Contact plating: Au (gold)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| Shell Material | PA | |
| Orientation | straight | |
| Assembly | cable assembly | |
| Type of locking | snap lock | |
| Pin number | 12 pole | |
| Additional parts | equipped | |
| Version | jack | |

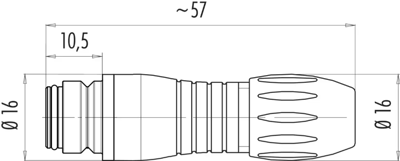

| Cable diameter | 2.5 to 4 mm | |
| Cable cross-section | 0.25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
