99 9134 02 12 | binder

Jack, 12 pole, solder cup, snap lock, straight, 99 9134 02 12

Order No.: 67F8052
EAN: 4099889732900
MPN:
99 9134 02 12
Series: 720

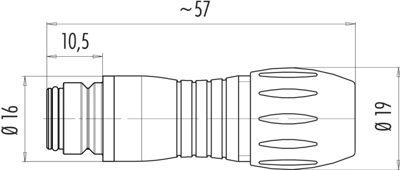

99 9134 02 12 binder Other Circular Connectors Image 1

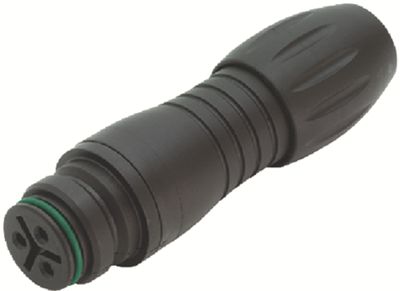

99 9134 02 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.3359 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
23.34 € *
Price list
Quantity
Price per unit*
1 pcs.
23.3359 €
10 pcs.
20.5156 €
50 pcs.
19.1114 €
150 pcs.
18.3022 €
500 pcs.
17.3621 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, type Binder 720.

With snap lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Solder connections: max. 0.25 mm². Contact block and housing: PA 66 to UL 94 V-0. Test surge voltage: 910 V. Contact resistance: 3.0 mohm. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +80 °C. Insertion/removal cycles: min. 500.

Female cable connector, type 720.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C), cable outlet): 99-9134-02-12, 12p, 60 V, 2.0 A, 6.0 to 8.0 mm

Technical specifications
Filter Property Value
Version jack
Cable cross-section 0.25 mm²
Pin number 12 pole
Orientation straight
Contact connection solder cup
Type of locking snap lock
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
