99 9128 490 08 | binder

Panel socket, 8 pole, THT, snap lock, straight, 99 9128 490 08

Order No.: 70P1339
EAN: 4099891701901
MPN:
99 9128 490 08
Series: 720

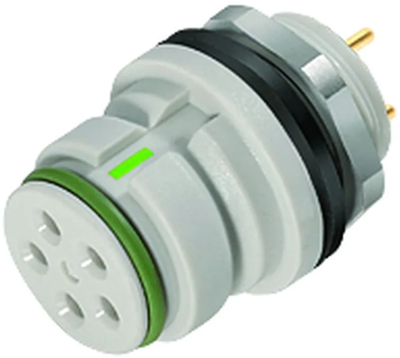

99 9128 490 08 binder Other Circular Connectors Image 1

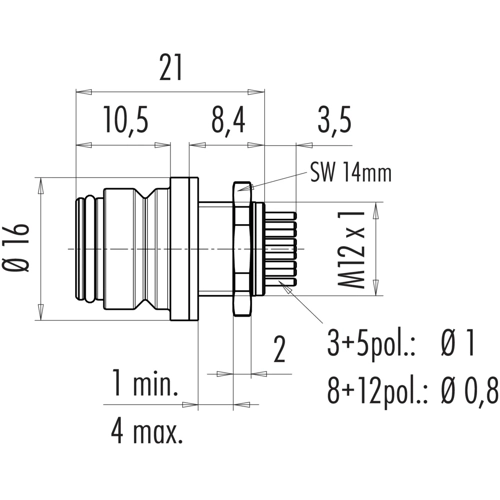

99 9128 490 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.8754 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.88 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8754 €
10 pcs.
12.8996 €
50 pcs.
12.0071 €
100 pcs.
10.8052 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 99 9128 490 08, binder

Snap-In IP67 (miniature) Female panel mount connector, Contacts: 8, unshielded, THT, IP67.

Technical specifications
Type of locking snap lock
contact surface gold-plated
Assembly panel mounting
Contact connection THT
Cable cross-section 0.25 mm²
Pin number 8 pole
Version panel socket
Additional parts equipped
Shell Material PA
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
