99 9127 50 08 | binder
Panel plug, 8 pole, solder connection, snap lock, straight, 99 9127 50 08
Unit Price (€ / pc.)
10.8409 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
10.84 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8409 €
10 pcs.
10.0793 €
50 pcs.
9.3653 €
100 pcs.
8.4490 €
*incl. VAT plus shipping costs
Subject to prior sale

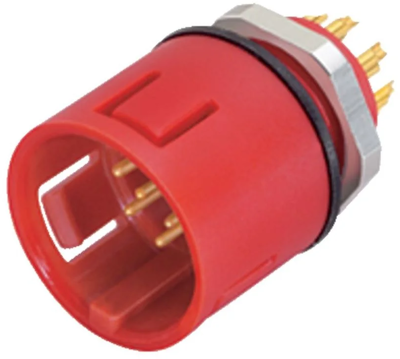

Male panel mount connector, 99 9127 50 08, binder
Snap-In IP67 (miniature) Male panel mount connector, Contacts: 8, unshielded, solder, IP67, VDE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Shell Material | PA | |
| Orientation | straight | |
| Assembly | cable assembly | |
| Type of locking | snap lock | |
| Pin number | 8 pole | |
| Additional parts | equipped | |
| Version | panel plug | |
| Cable cross-section | 0.25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
